Complete factory service repair manual for Hino FS1E heavy-duty vocational trucks with the E13C 12.9L inline-6 diesel engine. Covers common rail fuel injection, VGT turbocharger, EGR, DPF/SCR aftertreatment, PTO system service, and in-frame engine overhaul procedures. Includes ECU diagnostics, wiring diagrams, vocational application service procedures, and exploded engine views for Hino commercial truck maintenance across mixer, crane, and dump truck configurations.
Hino FS1E E13C Truck Models Engine Service Repair Workshop Manual Download PDF
VEHICLE/EQUIPMENT INTRODUCTION:
The Hino FS1E is a heavy-duty truck chassis from Hino Motors, the commercial vehicle division of Toyota Motor Corporation. While sharing the same Hino E13C engine as the FR1E model, the FS1E variant is typically configured for different duty cycle applications — often serving as a rigid truck chassis for specialized bodies including concrete mixer trucks, crane carriers, heavy dump trucks, and specialty transport configurations where the FS1E frame rails, axle configuration, and body mounting points are optimized for the specific vocational application.

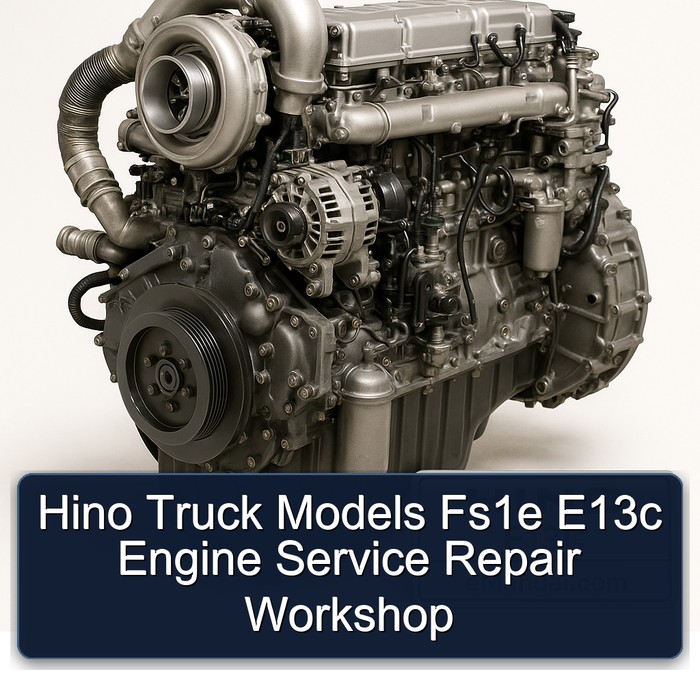

The E13C engine remains the heart of the FS1E, providing the same 12,914 cc inline six-cylinder turbocharged diesel powerplant with electronic common rail injection, variable geometry turbocharging, and advanced emission management technology. What differentiates the FS1E application is often the engine tuning and PTO (power take-off) integration — vocational trucks frequently tap engine power to drive auxiliary equipment such as concrete mixer drums, hydraulic crane pumps, dump body hoists, and winch systems. This additional power extraction places different thermal and mechanical loads on the engine compared to highway haulage, making proper maintenance and service interval adherence even more critical.
Hino heavy trucks are engineered for the rigorous conditions of Asian and Australian commercial transport, where long distances between service centers and high ambient operating temperatures demand robust component design and generous service interval margins. The E13C engine wet cylinder liner design allows for in-frame rebuilds without removing the engine from the chassis — a significant advantage for fleet operators who need to minimize vehicle downtime. The comprehensive service manual covers both highway and vocational application service requirements.
SERVICE AND REPAIR SCOPE:
- E13C engine in-frame overhaul — cylinder head removal and valve job, wet liner inspection and seal replacement, piston ring replacement without engine removal
- PTO system service — PTO drive gear inspection, PTO engagement mechanism testing, clutch pack replacement, and PTO output shaft seal service
- Electronic common rail fuel system — injector removal and bench testing, fuel rail pressure sensor calibration, supply pump flow rate test
- Variable geometry turbocharger maintenance — VGT actuator position sensor calibration, vane mechanism carbon cleaning, shaft play measurement
- EGR system — valve seat inspection, cooler flow test, carbon removal from mixing chamber, and EGR differential pressure sensor check
- Aftertreatment service — DPF soot load measurement, forced regeneration procedure, SCR injector cleaning, and DEF line purge
- Engine valve lash adjustment — tappet clearance setting with EGR thermal expansion compensation, cam profile wear limits
- Cooling system heavy-duty service — radiator pressure test, intercooler leak check, coolant conditioner additive specification, and fan drive inspection
- Lubrication system — oil pressure verification at operating temperature, oil pump relief valve setting, crankcase breather flow check
- Engine control diagnostics — Hino diagnostic tool connection, fault code analysis, sensor circuit verification, and ECU reflash procedures
- Starter and charging — heavy-duty starter solenoid test, brush and commutator inspection, alternator rectifier bridge diode check
- Accessory drive for vocational equipment — belt inspection for PTO-driven accessories, hydraulic pump mounting bracket integrity, vibration damper
- Frame and body mounting — frame cross member bolt torque, body subframe inspection, and engine-to-transmission alignment check
TECHNICAL SPECIFICATIONS:
- Engine Model: Hino E13C (same as FR1E)
- Configuration: In-line six-cylinder DOHC turbo diesel
- Displacement: 12,914 cc (12.9 liters)
- Fuel System: Electronic common rail with high-pressure supply pump
- Turbocharger: Variable geometry (VGT)
- Emission: EGR, DPF, SCR (market and application dependent)
- Truck Model: Hino FS1E heavy-duty vocational chassis
- PTO: Available for auxiliary equipment drive
- Application: Concrete mixer, crane, dump truck, specialty body
DIAGNOSTIC INFORMATION:
- PTO engagement failure — electrical switch continuity test, PTO solenoid resistance, clutch pack wear, drive gear tooth condition
- Engine thermal overload in vocational use — PTO load assessment, coolant concentration test, radiator debris removal, fan clutch engagement check
- Common rail pressure deviation — pressure sensor calibration against mechanical gauge, high-pressure pump wear, injector return flow test
- VGT overboost or underboost — actuator rod length adjustment, vane sticking from carbon, boost leak at charge pipe connections
- EGR-related engine roughness — EGR valve carbon buildup check, cooler passage restriction, EGR temperature sensor drift from specification
- DPF ash accumulation — ash cleanout procedure recommendation, differential pressure at steady-state operation, regeneration frequency analysis
- Hydraulic system contamination from engine oil — rear main seal leak source isolation, crankcase ventilation carryover check, PTO seal integrity
- Electrical fault in cold weather — battery cold cranking capacity test, starter current draw verification, glow plug circuit resistance check
ILLUSTRATIONS AND DIAGRAMS INCLUDED:
- E13C engine overhead view with PTO mounting locations identified
- Common rail fuel system with injector and pump assembly detail
- VGT turbocharger with actuator and vane mechanism cross-section
- EGR and aftertreatment flow diagram for vocational configuration
- Electrical system with PTO control circuits and diagnostic connector
- Cooling system with intercooler and vocational high-load routing
- In-frame rebuild sequence illustrations with liner and piston installation
- Engine mounting and frame rail interface with body mounting points
COMPATIBILITY:
- Engine: Hino E13C (12.9L inline-6 turbo diesel with common rail)
- Truck Model: Hino FS1E heavy-duty vocational chassis
- Covers all emission and PTO configuration variants
- Applicable to concrete mixer, crane, dump, and specialty body applications
FILE PROPERTIES:
- Format: Searchable PDF — instant digital download
- Language: English
- Delivery: Immediate electronic access after purchase
- Access: Download anytime after purchase — permanently available for vocational fleet maintenance
