Comprehensive service repair workshop manual for the 1982-1991 Audi 200 executive sedan and wagon. Covers all engine variants from naturally aspirated 2.2L inline-five to turbocharged 20-valve Quattro models. Includes complete engine overhaul procedures, turbocharger service with wastegate adjustment, Quattro all-wheel drive Torsen differential overhaul, five-speed manual and three-speed automatic transmission rebuild, suspension geometry specification, ABS brake system diagnostics, Bosch fuel injection calibration for KE-Jetronic and Motronic systems, cooling system maintenance, electrical troubleshooting with wiring schematics, emission system inspection, body panel alignment, and all routine service procedures. Contains detailed exploded views, OEM torque specifications, and diagnostic flowcharts professional technicians rely on.

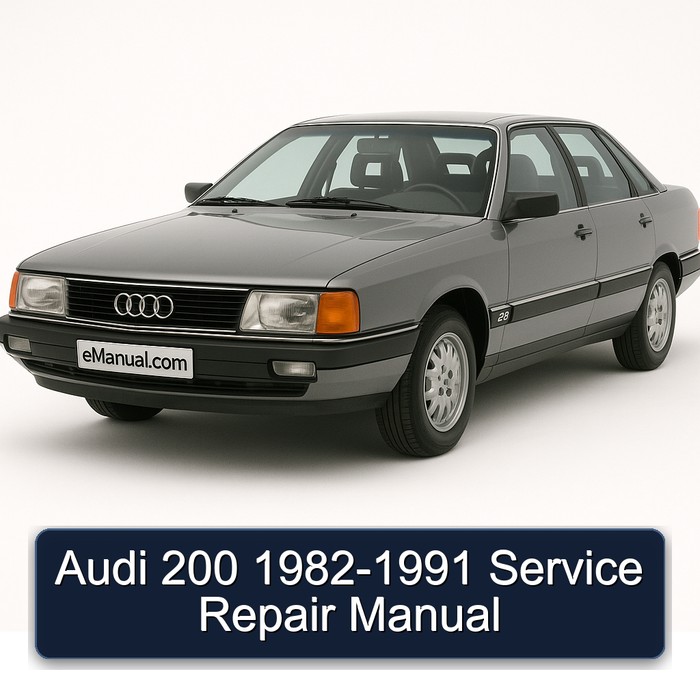

The Audi 200 was Audi premium executive sedan and wagon built for a decade from 1982 through 1991 as the upscale variant of the Type 44 C3 platform 100 series vehicles. This distinguished vehicle featured a robust five-cylinder engine lineup ranging from a naturally aspirated 2.2 liter unit producing approximately 136 horsepower to a turbocharged 20-valve variant delivering up to 230 horsepower in the Quattro configuration. The aerodynamic C3 body achieved a remarkable 0.32 drag coefficient while the Quattro all-wheel drive system employed Torsen center differential technology for automatic torque distribution. Bosch fuel injection evolved from KE-Jetronic mechanical systems to electronic Motronic management across the model range. This digital service manual provides comprehensive repair and maintenance guidance for preserving this classic Audi executive vehicle.
VEHICLE EQUIPMENT INTRODUCTION:
The Audi 200 represented the pinnacle of Audi executive sedan engineering during the 1980s, featuring turbocharged five-cylinder performance, aerodynamic body design, and available Quattro permanent all-wheel drive that delivered exceptional all-weather capability. With production spanning 1982 through 1991 this model established many engineering principles that carry through to modern Audi vehicles.
SERVICE AND REPAIR SCOPE:
- Complete 2.2L five-cylinder engine overhaul for naturally aspirated and turbo variants
- Garrett turbocharger inspection, wastegate adjustment, and cartridge replacement
- Quattro all-wheel drive Torsen center differential service and seal replacement
- Five-speed manual and three-speed automatic transmission rebuild procedures
- Front MacPherson strut and rear torsion bar suspension overhaul
- Anti-lock braking system diagnostics, sensor testing, and hydraulic unit service
- Bosch fuel injection system calibration for KE-Jetronic and Motronic variants
- Electrical system troubleshooting with complete wiring circuit diagrams
- Heating ventilation and air conditioning refrigerant service and component repair
- Cooling system maintenance including water pump and thermostat replacement
- Steering rack power assist pump service and alignment specification
- Emission control system diagnostics and catalytic converter inspection
- Body panel removal, alignment, and weather seal replacement
TECHNICAL SPECIFICATIONS:
- Engine: 2.2L inline-5 cylinder (naturally aspirated 136HP, turbo 165-230HP)
- Turbo: 20-valve DOHC with intercooler on performance variants
- Transmission: 5-speed manual or 3-speed automatic
- Drivetrain: Front-wheel drive or Quattro AWD with Torsen differential
- Suspension: Front MacPherson struts, rear trailing-arm with torsion bars
- Fuel system: Bosch KE-Jetronic or Motronic electronic injection
- Electrical: 12V system with 90-120A alternator output
- Compression: 8.5:1 turbo, 10.0:1 naturally aspirated
DIAGNOSTIC INFORMATION:
- Turbo boost pressure measurement and wastegate diaphragm leak testing
- Quattro differential clutch pack wear assessment
- ABS sensor gap verification and tone ring inspection
- Engine compression test procedure specific to five-cylinder firing order
- Oxygen sensor signal response testing under varying load conditions
- Fuel pressure regulation at idle and wide-open throttle
- Idle speed and mixture adjustment for KE-Motronic injection
- Timing belt inspection interval recommendations and tension specification
ILLUSTRATIONS AND DIAGRAMS INCLUDED:
- Complete wiring diagrams for all electrical circuits and connector pinouts
- Engine exploded views with cylinder head torque sequence
- Quattro drivetrain layout with differential cross-sections
- Fuel injection system component schematics
- Suspension assembly detail with geometry measurements
- Brake hydraulic circuit diagrams with ABS valve body
COMPATIBILITY:
- Covers all 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 Audi 200 variants
- Includes 200 5E, 200 Quattro, 200 20V Quattro, sedan and Avant wagon
- Naturally aspirated and turbocharged five-cylinder engines
FILE PROPERTIES:
- Format: Searchable PDF
- Language: English
- Delivery: Instant digital download
- Access: Download anytime after purchase
